Moza CRP2 Pedals

Original price was: $700.00.Current price is: $650.00.

Out of stock

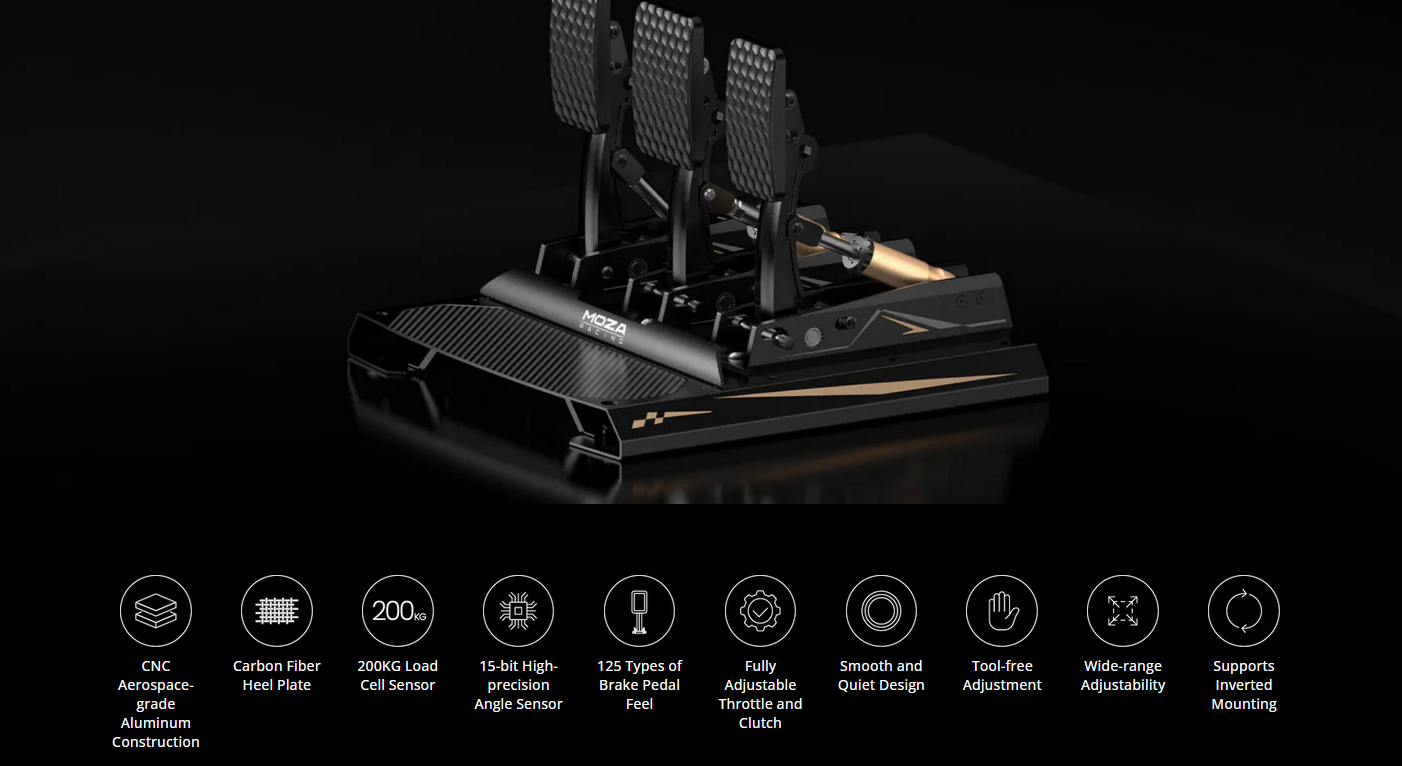

Introducing the MOZA CRP2 Load Cell Pedals—crafted from CNC aerospace-grade aluminum with a carbon fiber heel plate, these pedals offer unmatched precision and durability. Featuring a 200kg load cell sensor and a 15-bit high-precision angle sensor, the CRP2 delivers accurate and responsive brake feel with up to 1,764 customization options, accommodating everything from road cars to F1-level performance.

Out of stock

SKU: Moza-CRP-Pedals-1 Categories: ,

Description

Introducing the MOZA CRP2 Load Cell Pedals—crafted from CNC aerospace-grade aluminum with a carbon fiber heel plate, these pedals offer unmatched precision and durability. Featuring a 200kg load cell sensor and a 15-bit high-precision angle sensor, the CRP2 delivers accurate and responsive brake feel with up to 1,764 customization options, accommodating everything from road cars to F1-level performance. The tool-free adjustment system ensures quick, effortless tuning, while its sleek, minimalist design integrates seamlessly into any sim racing setup. With support for inverted mounting and full compatibility with PC and Xbox systems, the CRP2 pedals are engineered for serious sim racers seeking professional-grade performance.

CRP2 PEDAL PRODUCT SPECIFICATIONS

DescriptionCRP2 Pedals
Pedal Body MaterialAerospace-grade aluminum alloy

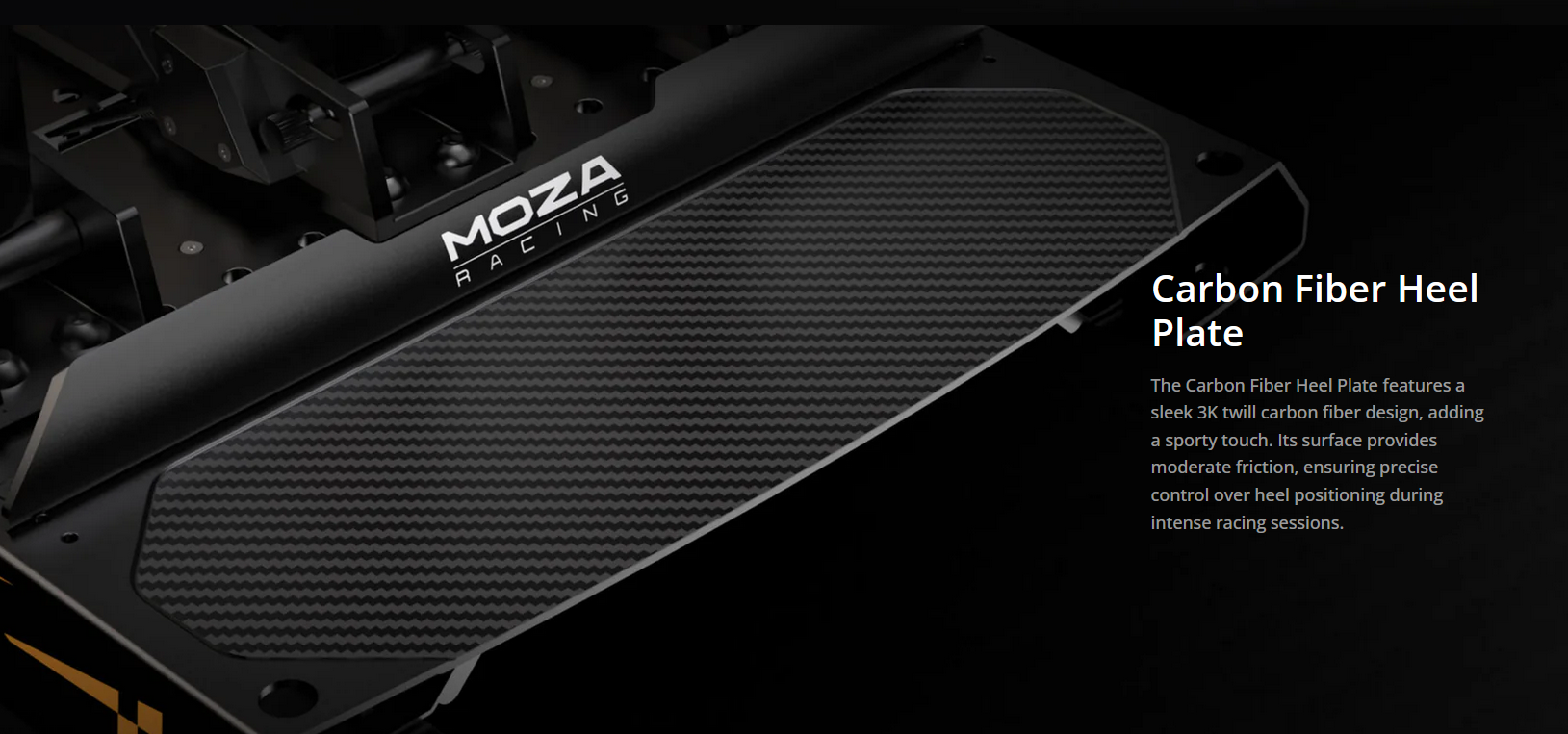

Heel Plate Material3K twill carbon fiber
Heel Plate Material3K twill carbon fiber
Base MaterialHigh-strength steel

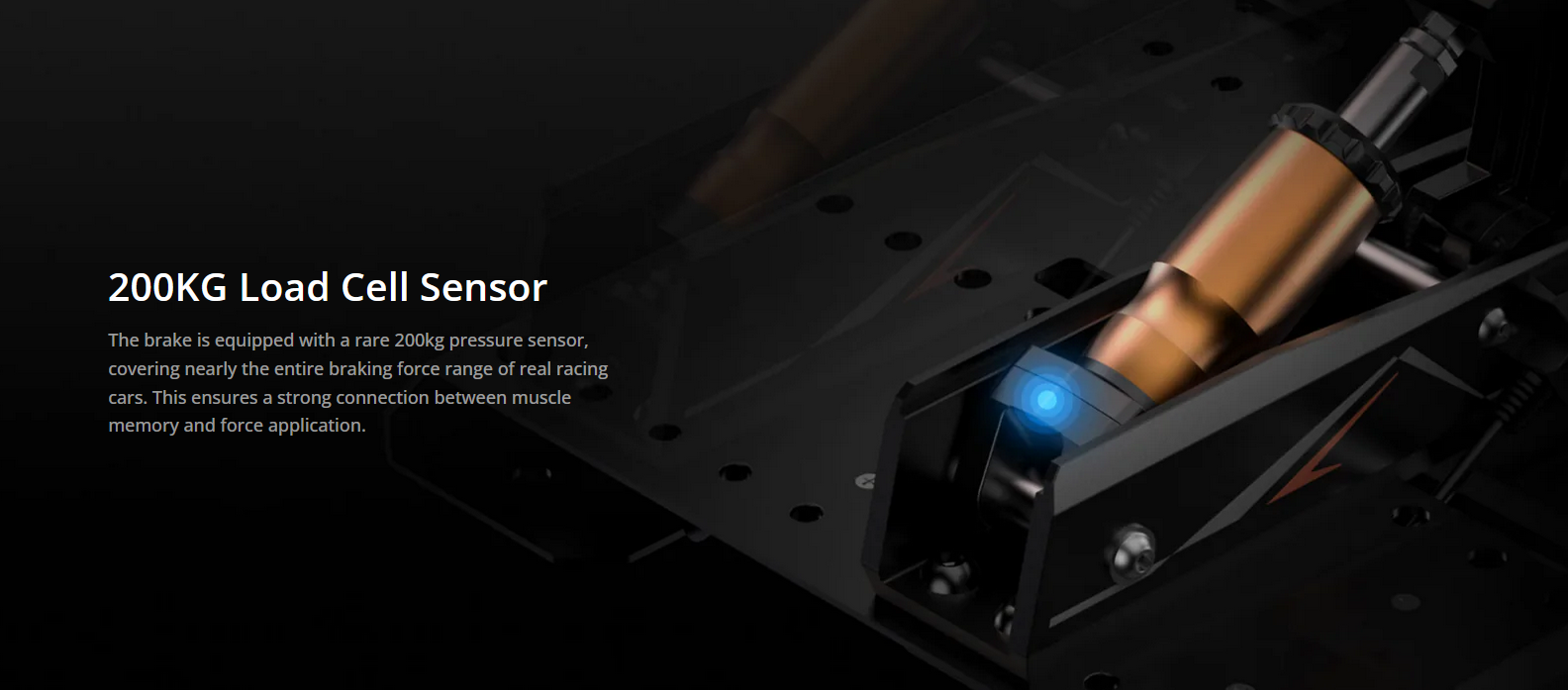

Load Cell Sensor Range0–200kg
Brake SensorLoad cell sensor and angle sensor

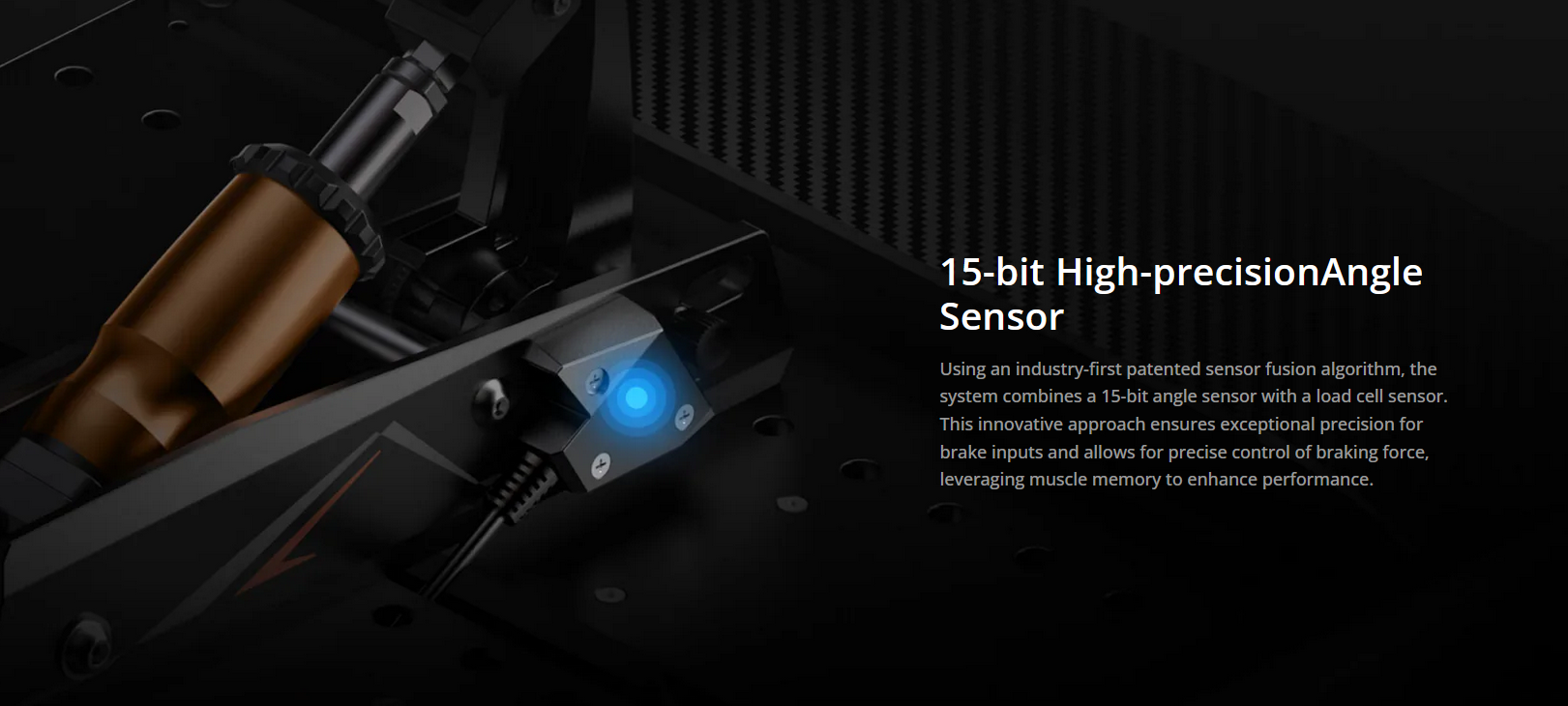

Angle Sensor Resolution15-bit (32768 PPR)

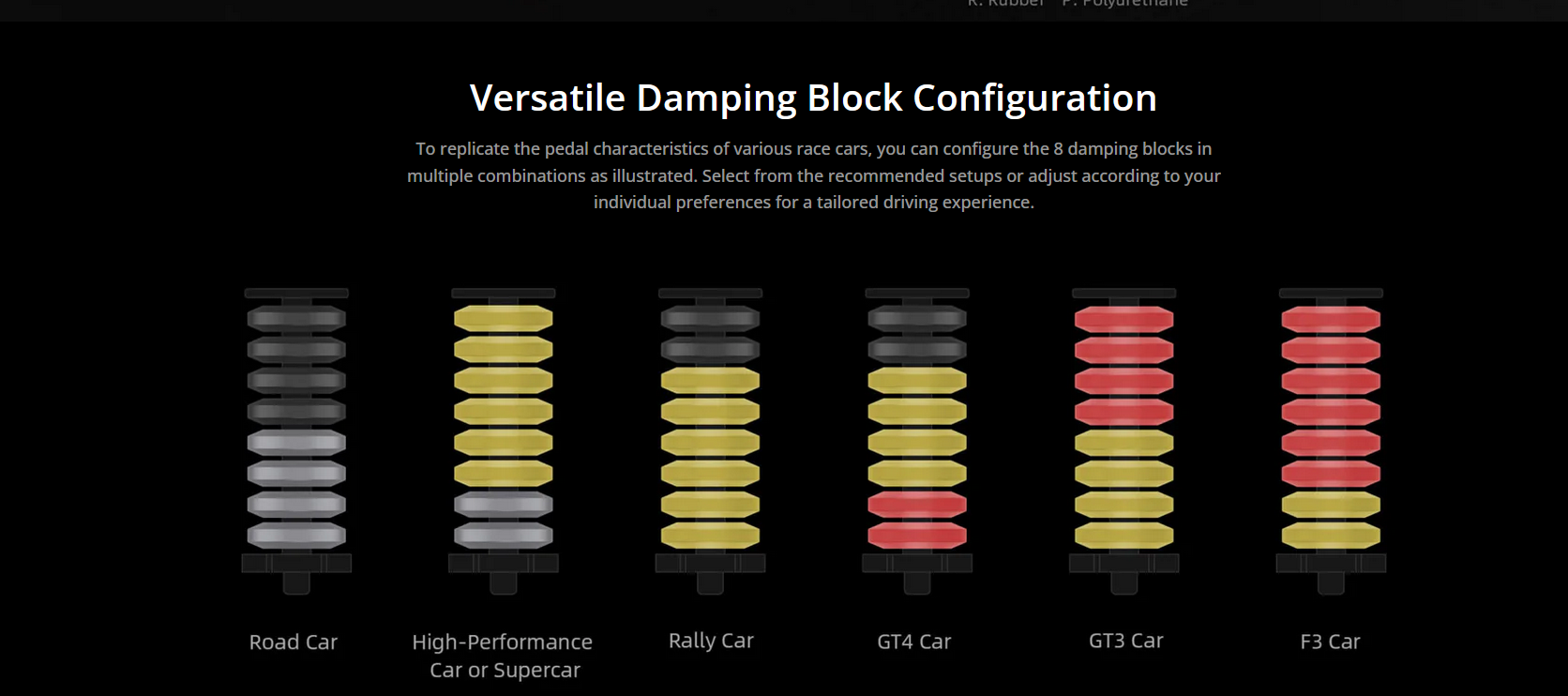

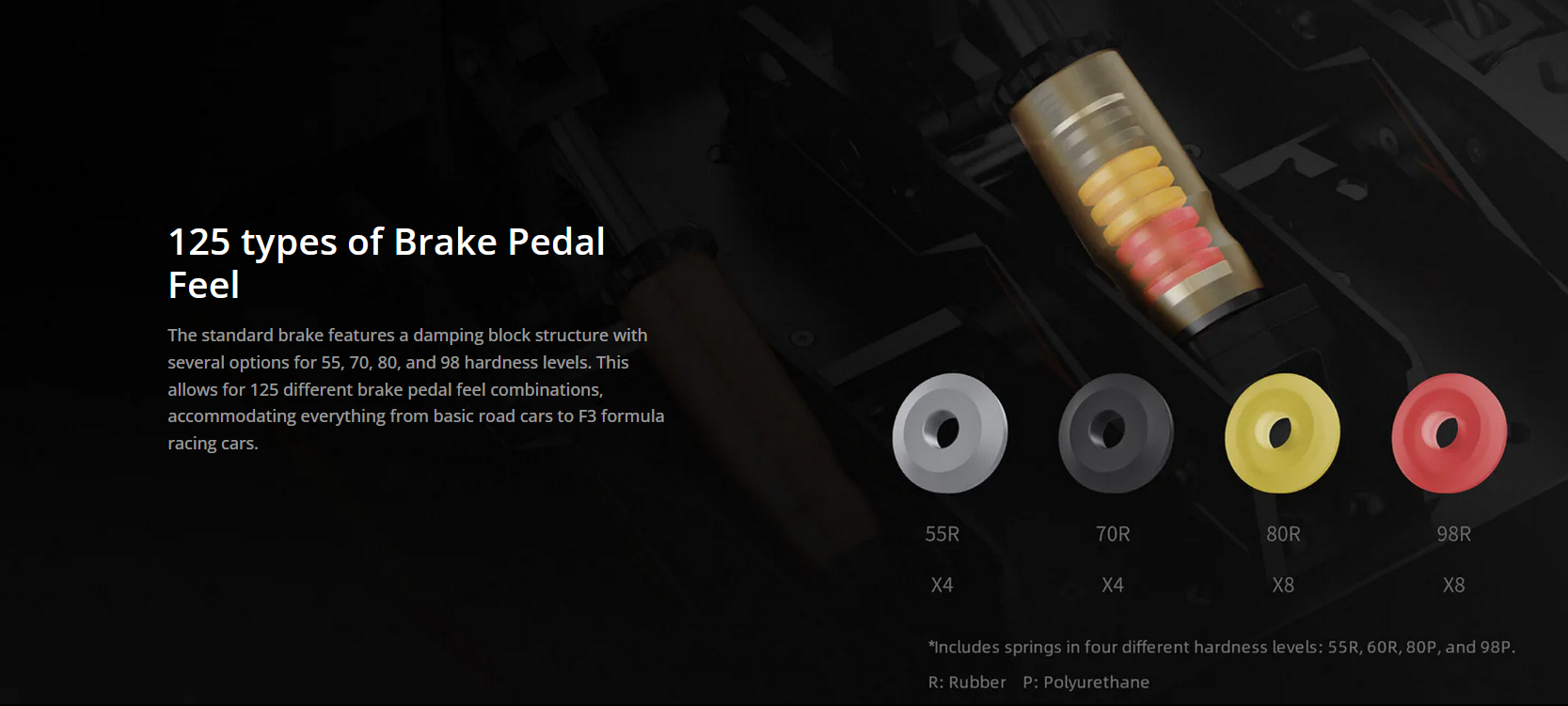

Brake Pedal Feel115 standard adjustments, 1764 optional configurations
Throttle AdjustmentTwo spring options with infinite adjustment
Clutch AdjustmentTwo spring options with infinite adjustment
Brake Travel Adjustment15–20°
Throttle Travel Adjustment15–23°
Clutch Travel Adjustment15–25°
Pedal Angle Adjustment0–15°
Pedal Face Height AdjustmentUp to 30mm
Footrest AdjustmentUp to 30mm
Pedal Curve AdjustmentAdjustable
Real-time Pedal Output DisplayAdjustable
Pedal Pressure Engagement PointAdjustable

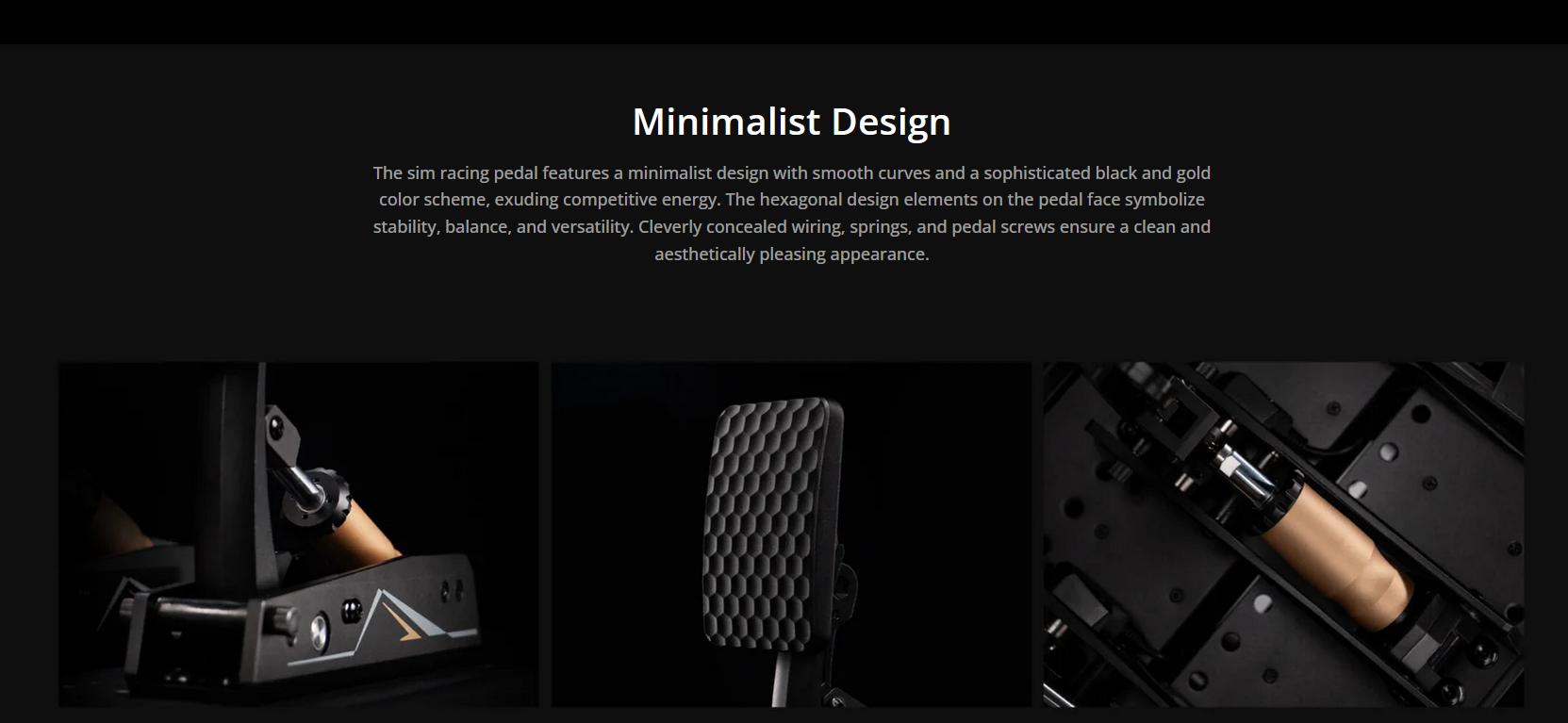

Pedal SurfaceBiomimetic curved
Inverted Mounting KitOptional

KEY FEATURES

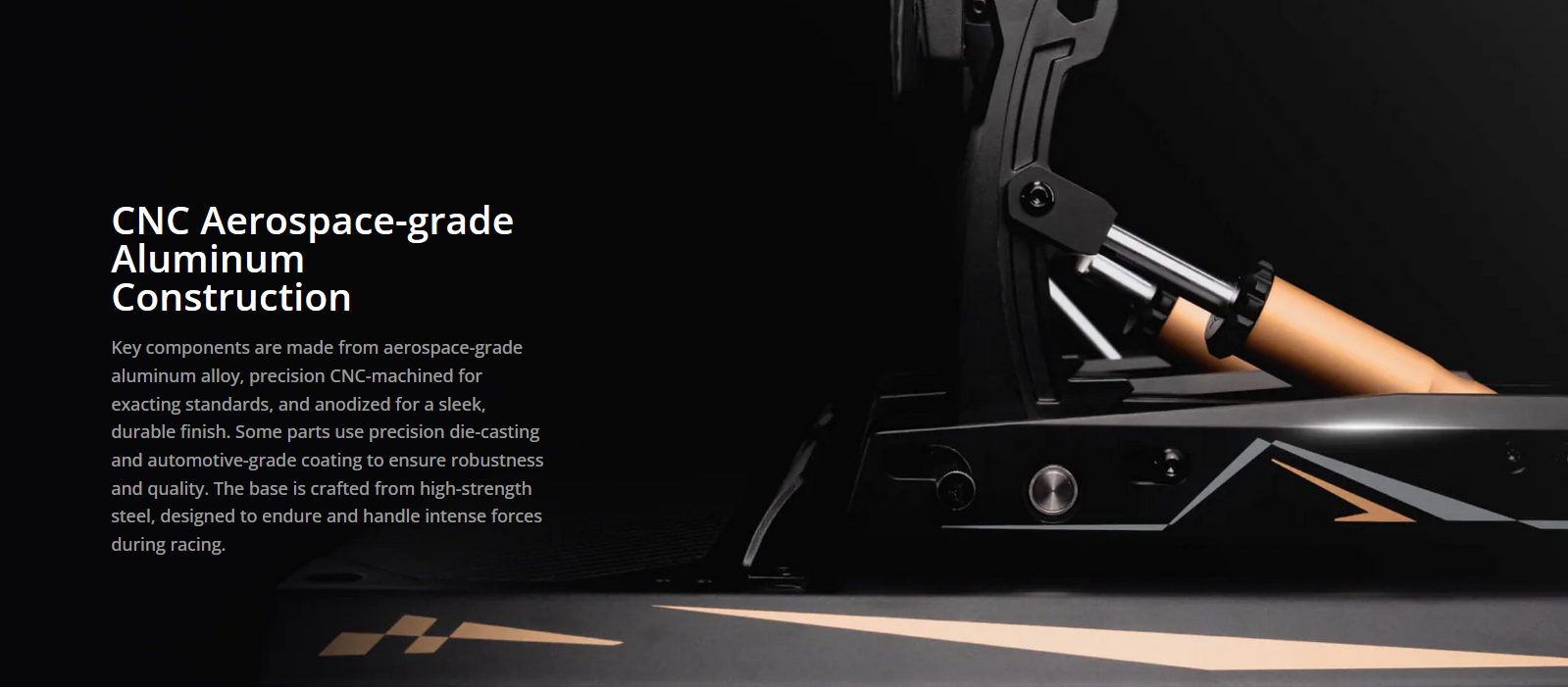

  • All aluminum alloy with CNC process
  • 200kg Load Cell
  • Pedal Face Angle Adjustable
  • Pedal Distance Adjustable
  • Pedal Flush Adjustable
  • Pedal Travel Adjustable

INCLUDED IN BUNDLE

  • Brake, and Throttle (Clutch is optional)
  • Base Plate x1
  • Toolkit
  • Warranty card

Manuals and Mounting

MOZA CRP Pedals Manual

MOZA Pit House Downloads (PC Only)

MOZA APP Downloads

Additional information

Weight 8.25 kg
Dimensions 45 × 45 × 20 cm
